Multi-Parameter Patient Simulator

Key Features

• 12 lead ECG simulation; independent outputs for each signal lead
• ST Segments: 8 elevated and 8 depressed
• Axis Deviation: Normal (intermediate), horizontal, and vertical.
• Neonatal Mode
• ECG Performance Testing
• Over 60 Arrhythmia selections
• 2 channel invasive BP simulation
• Temperature and Respiration Simulations
• Pacer simulations
• Cardiac output*
• SpO2 Pulse Oximeter Tester and Non-Invasive BP modules are compatible with all major industry manufacturers
• Auto Settings
• Auto Sequences Test reports

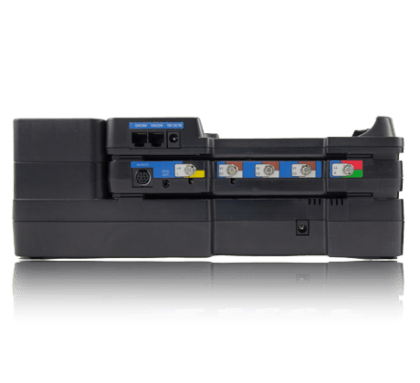

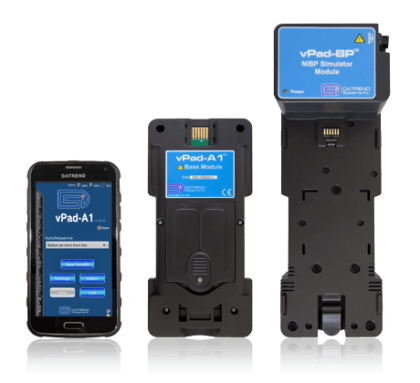

DatrendSystems’vPad-A1, based on our revolutionary Vision-Pad Technology, is an all-in-one patient simulation system.vPad-A1is modular and comprises a multi-Parameter Patient Simulator, SpO2 test module, and a Non-Invasive Blood Pressure simulation module which may be used together or independently in various combinations, with an Android handheld device or vPadtablet providing the user interface.

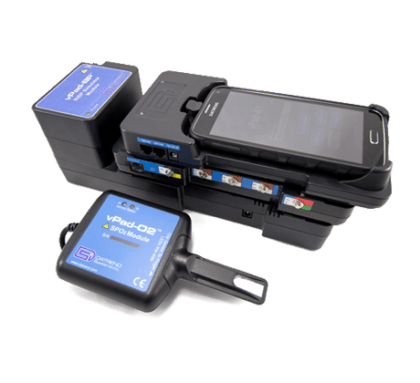

Built on Datrends’ Vision Pad Platform, vPad-A1 is the only modular Vital Signs Simulator currently on the market. Comprising of 3 modules — vPad-PS (a Multi-Parameter Patient Simulator), vPad-O2 (a Pulse Oximeter Tester), and vPad-BP (a Non-Invasive Blood Pressure Simulator) - the modules can be used together, independently, or in various combinations. Integrated user-customizable SpO2 R-Curves and NIBP envelopes are a first in our industry.

Key Features

• Compatible with all major industry manufacturers
• Field editable Envelopes allows for easy setup of new patient monitors
• Unlimited preset NIBP simulations
• Easy to navigate
• Auto Settings
• Auto Sequences
• Test reports
• Field upgradeable
• Control via Bluetooth or USB
• Part of the vPad platform, and operated through an Android device

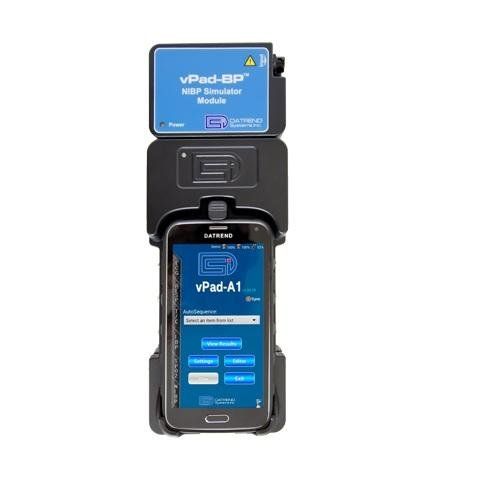

vPad-BP,part of the vPad-A1 family, is a NIBP (non-invasive blood pressure)simulator designed to test the accuracy and repeatability of the NIBP function on Patient Monitors. User programmable settings allow for easy on-site configuration to accommodate new models of NIBP devices.

Key Features

• 12 lead ECG simulation
• ST Segments: 8 elevated and 8 depressed
• Axis Deviation: Normal (intermediate), horizontal, and vertical.
• Neonatal Mode
• ECG Performance Testing
• Over 60 Arrhythmia selections
• 2 channel invasive BP simulation
• Temperature and Respiration Simulations
• Pacer simulations
• Cardiac output*
• Auto Settings
• Auto Sequences
• Test reports
• Field upgradeable

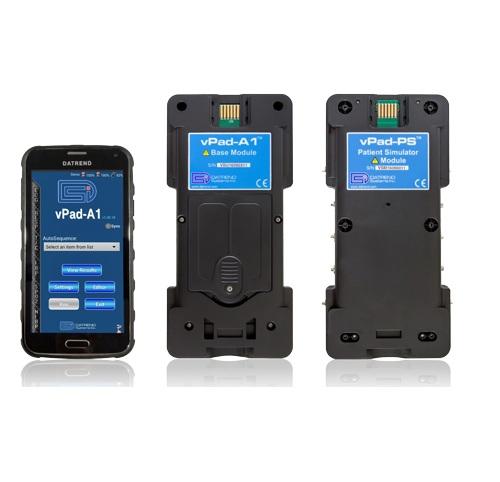

vPad-PSis our latest multi-parameter patient simulator. Used alone or in combination with thevPad-O2&vPad-BP, vPad-PSprovides4 of the 6 available simulations: ECG, two-channel IBP (invasive blood pressure), respiration and temperature.

Key Features

• Compatible with all major industry manufacturers
• Field editable R Curves allows for easy setup of new oximeters
• Unlimited preset patient simulations
• Five automated test sequences for determining oximeter alarm response time
• Four preset signal artifact simulations
• Easy to navigate
• Control via Bluetooth or USB
• Auto Settings
• Auto Sequences
• Test reports
• Field upgradeable

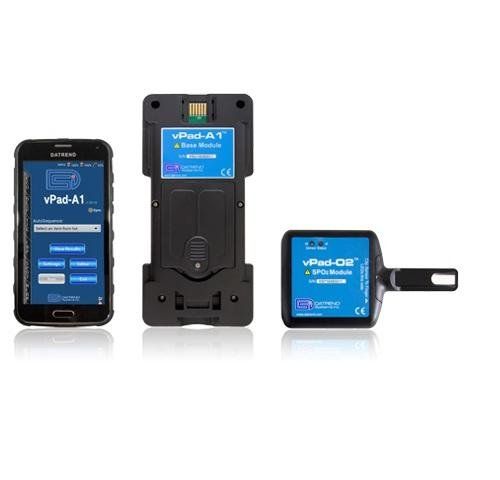

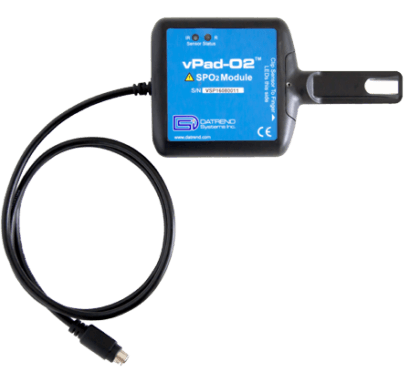

vPad-O2is the next generationSpO2 tester.

Built on the vPad platform, vPad-O2 is user programmable so new R-Curves can easily be added in the field without needing to send the unit back to a service centre for upgrading. Being part of the vPad-A1 family, vPad-O2 can be upgraded to include a Multi-Parameter Patient Simulator and / or a NIBP Simulator.

Key Features

• Easy adjustment of five preset oxygen saturation levels, six preset heart rates and four preset amplitudes
• Signal Artifact simulations
• Preset patient parameters
• Alarm Testing
• Report printing
• 2×20 character LCD display gives you all the information you need
• Identifies the oximeter make and model
• Status indicator of the test in progress with seven status messages
• Rate
• Saturation
• Pulse Amplitude
• Add Sensitest for analysis of up to 5 unique probes
• EXCLUSIVE NELLCOR-PURITAN BENNETT SENSOR PORT

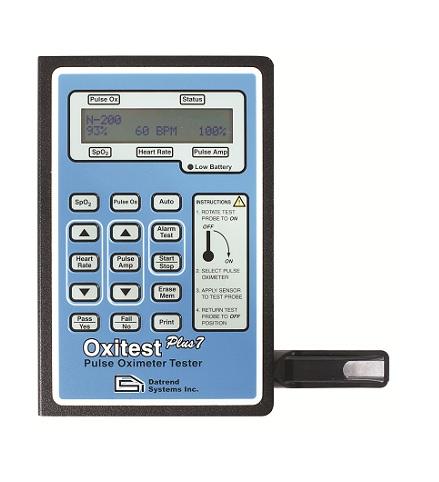

The versatile, handheld Oxitest Plus7 provides the most advanced technology available in the market today for verifying the proper operation and performance of pulse oximeter monitors and modules throughout the clinical environment.

Designed for compatibility with a wide variety of pulse oximeters, the Oxitest Plus 7 is the efficient, cost effective solution to your pulse oximeter testing requirements.

The Oxitest Plus 7 has an exclusive Nellcor-Puritan Bennett sensor port , which was developed in cooperation with Nellcor ®. This Industry-exclusive feature allows correct selection of the instrument's simulation output to the specific R-Cal value of the attached Nellcor ® probe.

• 12 lead ECG simulations with 9 independent outputs for each signal lead
• 16 total ST Segments: 8 elevated and 8 depressed
• Axis Deviation: Normal (intermediate), horizontal, and vertical. (Modifies baseline ECG during arrhythmia's)
• Neonatal Mode: ECG R wave width is reduced to 40ms
• ECG Performance Testing
• 52 Arrhythmia selections
• Temperature and Respiration Simulations
• Pacer simulations
• Defibrillator training
• Remote Control via RS-232
• Optional:2 or 4 Electrically Isolated BP Channels, including Swan-Ganz simulation
• Optional: Cardiac output
• Optional: Mechanical Fetal Heart
• Optional: Fetal, Maternal and IUP simulations

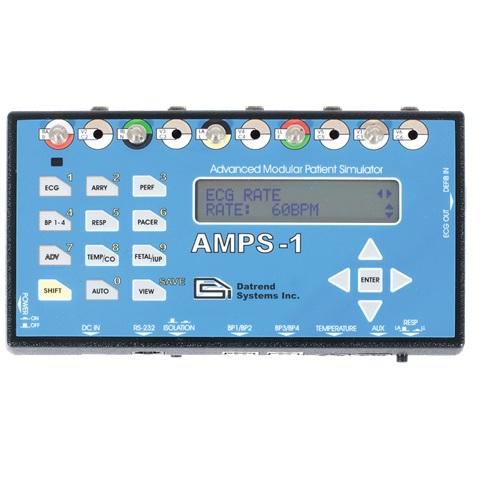

The unique modular design of AMPS-1 allows you to get just what you need as you need it. Upgrading and adding modules is easily accomplished by you at your facility. No need to send it to a repair facility just to add features.

Key Features

• NIBP-1030B or NIBP-1030-BE
• Soft Carrying Case
• 5 Adapters
• NIBP-1010 (basic features, NIBP only)
• Large graphic display
• Selectable options and parameter setup
• Full range manometer
• Adult, neonatal, hypertensive and hypotensive modes
•  0-500 mmHg pressure range
• +/- 1% of reading pressure accuracy
• Digital pressure envelope offset
• Optional peak pressure detect with simple reset
• SpO2 ready – compatible with msp-2100 module
• Digital calibration – no pots to turn
• Software adjustable contrast
• Flash programmable
• Battery life display (0 to 100%)
• Optional rechargeable nimh batteries
• Battery eliminator
• RS232 interface

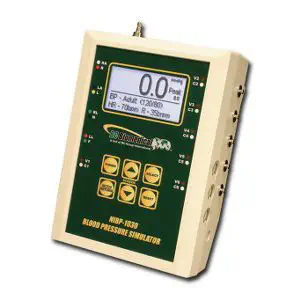

The NIBP-1030 Seriesis a microprocessor-based, high precision,non-invasive blood pressure (NIBP)set of simulators. The units are small, easy to use and have multiple features to fit many applications.NIBP-1030offers realistic ECG waveforms that are full QRS and respiration waveforms, invasive blood pressure, temperature, arrhythmias, and a leak rate test mode.

The graphic display not only provides multiple screens that give the pressure digitally in mmHg, but also offers views of the plot of the overall pressure or a close-up of the BP waveform.
NIBP Kits include all the adapters, all the features for that model, and the custom of carrying cases at significant savings. The NIBP-1040 is only available as a kit.
