Fetal and Neonatal Test Equipment

Datrend - FMS-3

Fetal Maternal CTG Simulator


Key Features


  • Two (2) direct Fetal ECG’s
  • Five (5) full Maternal ECG leads
  • Four (4) separate Fetal ECG tracings
  • Three (3) Fetal ultrasound channels with “Triplets” capability
  • Thirteen (13) Fetal static ECG rates
  • Fifteen (15) trends of Fetal data representing real-life case studies
  • Large easy-to-read display with back light
  • Easy to operate
  • Remote Control via RS232
  • Single 9-volt battery operation or use with an external AC power adapter for continuous simulation.
  • At just 5.5” x 3.6” x 1.3” and weighing in at only 11.5 ounces, the FMS-3 is a feature-packed Fetal/Maternal simulator in one of the smallest and lightest weight physical packages available. It’s smaller, lighter, and more cost-effective than any other similarly featured fetal/Maternal simulation in today’s market.

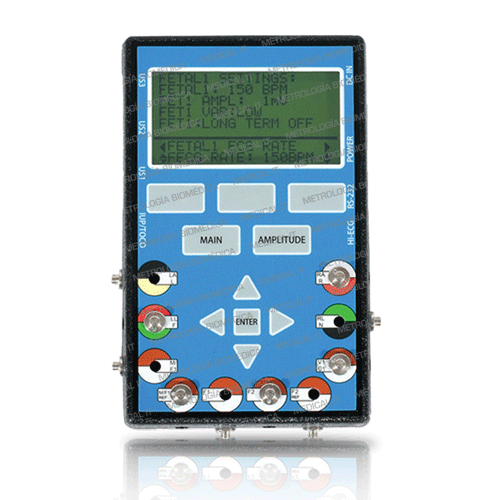

The FMS-3 Fetal/Maternal Simulator sets a new standard of performance and value in simulators for fetal monitors. Simply stated, the FMS-3 provides enhanced simulation capabilities, more simulation channels, additional functionality, and full 5-lead Maternal ECG simulation, all at a price that is considerably less than competitive models.

Its unique features include three (3) channels of ultrasound simulation for the detection and monitoring of “Triplets”.

Share with your friends:


Datrend - vPad IN
Incubator and Radiant Warmer Testing System


Key Features


  • Tests to IEC 60601-2-19, IEC 60601-2-20 and IEC 60601-2-21
  • Follows both Edition 1 and Edition 2 of Standard
  • Built on the Vision-Pad platform to give you greater flexibility and scalability
  • Wireless control of tests within incubator
  • Changes to test can be made without disturbing heat environment
  • Measures all parameters automatically following user-defined protocols
  • Results can be automatically merged with Electrical Safety test results


  • Compatible with closed, forced air convection incubators, and open, radiant infant warmers.
  • Simultaneously measures humidity, airflow, sound, and 6 different temperatures
  • Tests are carried out in accordance with IEC 60601-2-19, IEC 60601-2-20, and IEC 60601-2-21
  • All sensors are independently movable, to be placed in positions required by the Standard
  • Sound level measurements may be taken outside the incubator for external alarm test
  • Results can be automatically merged with vPad Electrical Safety test results
  • Optional precision controlled heater can accurately test body temperature sensors.


THE NEXT GENERATION INFANT INCUBATOR & RADIANT WARMER TESTING SYSTEM

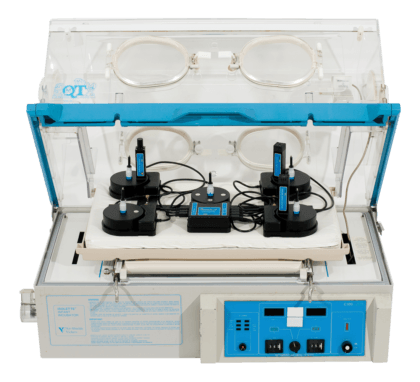

vPad-IN is a next generation infant incubator and radiant warmer testing system that meets the IEC Standards for Incubators (IEC 60601-2-19), Infant Transport Incubators (IEC 60601-2-20) and Radiant Warmers (IEC 60601-2-21).


vPad-IN has all the functionality and scalability that you have come to expect from Vision-Pad Technology products. Parameters are sensed inside the incubator environment and results are transmitted wirelessly to a 10.1″ Android tablet for analysis and display. Test parameters and test protocols can be modified without disturbing the equilibrium of the heated environment, thereby minimizing test times.
