Infusion Device Analyzers

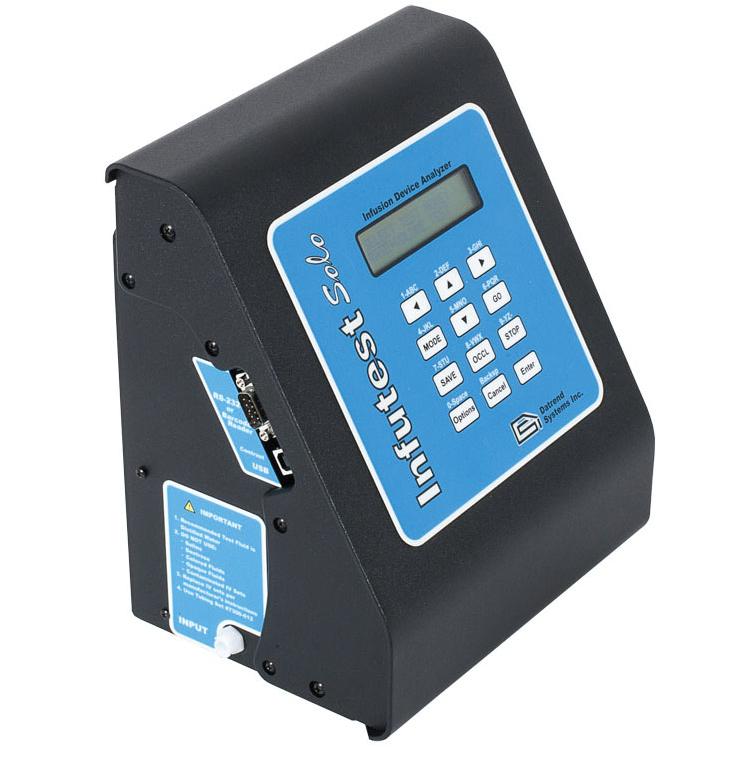

Datrend - Infutest Solo

Single Channel Infusion Device Analyzer


Key Features

  • Lightweight – Battery-Operated
  • Auto-Test Function
  • Cost Effective
  • Accuracy – 1% on ALL pumps, including Baxter Colleague and Alaris® Signature.
  • Portability – Infutest Solo allows both line and battery use. Battery provides up to 30 hours of continuous operation.
  • Auto-Test Mode – Enables automatic flow and pressure test for VTBI/Dose accuracy tests and more.
  • Multi-Pump Test Results – Infutest Solo will retain the test results for more than 120 pump tests in its internal memory until downloaded to a PC.
  • Keypad Input – Infutest Solo allows the user to enter an equipment control number from the front panel keypad or by using the optional RS-232 barcode scanner to uniquely identify individual tests.
  • USB Connectivity – Infutest Solo incorporates USB communication capabilities for efficient data transfer to your PC.
  • Data Transfer – Infutest Solo comes complete with Windows-based data transfer program (DTP-Solo) for quick and easy data transfer, plus organization and printing of test results.
  • vPad and ES601 Plus Connectivity – Connect Infutest Solo to your vPad* or ES601 Plus Electrical Safety & Performance Analyzers for the ultimate in capability and flexibility!


Highly Accurate and Cost-Effective Single-Channel Analyzer

Infutest Solo meets the needs of customers who desire a highly accurate infusion device analyzer capable of a measuring infusion device output flow patterns, including pulsatile flows, but can manage their work load with a cost-effective single-channel analyzer.

Memory Storage for up to 120 Tests


The Infutest Solo has internal memory storage for up to 120 test records. You can further expand testing capabilities by connecting the Infutest Solo to vPad* or ES601 Plus Electrical Safety Analyzers by running full auto sequences.


Store and Transfer Data Easily

When not connected to the ES601 Plus, it’s still easy to get information about the device under test into Solo. Just use the front panel keypad to enter or connect an external barcode reader to scan the control number of the pump you are testing. Store the test results on all of the pumps you process, then transfer the test data to the Infutest Solo PC Utility Software at your convenience via USB or RS-232.

Share with your friends:

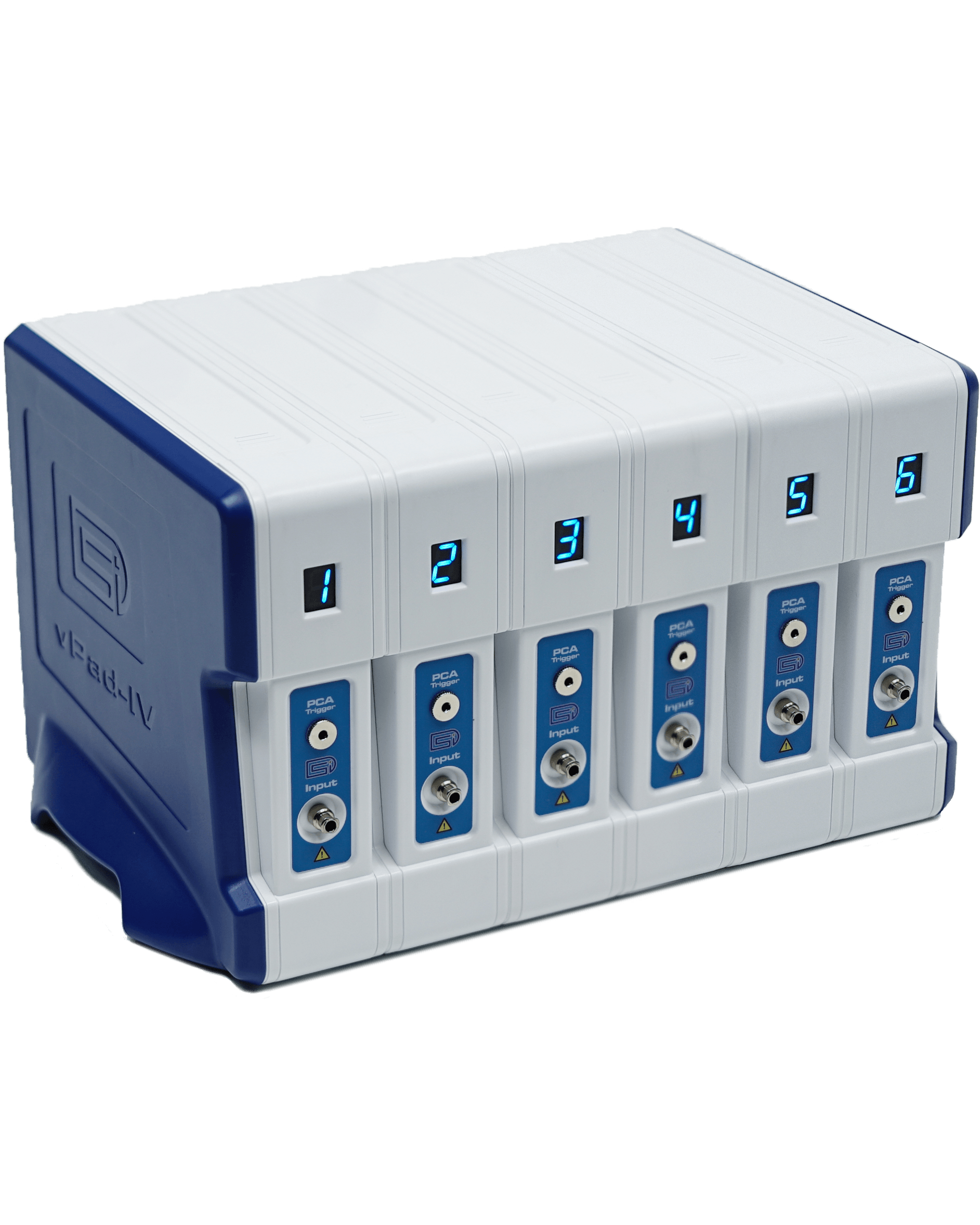

Datrend - vPad- IV

Ultimate Infusion Device Analyzer

Key Features

  • Field configuration between 1-6 channels.
  • Large Intuitive User Interface.
  • Simple Automatic Pass/Fail Testing.
  • Conforms to all IEC 60601-2-24 test requirements for Infusion Pumps & Pump Controllers
  •  Modular, expandable system can be arbitrarily configured as 1 to 6 channels
  •  Completely independent channels enable differing tests and inspections to be executed simultaneously
  •  Automatic or Manual Flow, Piggyback/KVO, PCA Pumps, and Occlusion Pressure tests
  •  Automated test setups provide user-defined pass/fail conditions
  •  User-managed test sequences combine PM Checklists and Automated Testing
  •  Large 10” high-resolution LCD touch screen
  •  Integrates with existing vPad platform
  •  Full-range class-leading accuracy from 0.1 – 3000 ml/hr


vPad-IV is the most advanced Infusion Device Analyzer on the market today.


 Its unique yet simple slide-and-click modular system will allow users to arbitrarily configure each analyzer between 1 – 6 channels.


vPad-IV conforms to all IEC 60601-2-24 test requirements.


The   vPad-IV conforms to all IEC 60601-2-24 test requirements for Infusion Pumps & Pump Controllers. In addition to the expected flow and volume testing, vPad-IV comes standard with dual-rate (Keep-Vein-Open/Piggyback) testing, PCA pump testing with built-in trigger, Occlusion Pressure testing, and even Channel-Linking for multi-channel infusion devices.


LCD Touch Screen & Transfer Data Easily.

With its large 10” LCD touch screen, vPad-IV is both intuitive and easy-to-use. Users could choose between Test View where all available measurements are continuously updated, Graph View with multiple live graphs to choose from, and All-Channel View to monitor test progress for all available channels. Further, Trumpet Curve and statistical analysis can be done directly on the tablet without using a PC!
