Endoscope Test Equipment

Key Features

• Analyzes problems with rigid endoscope lenses
• Cracked relay lenses
• Moisture in optical system
• Dirt on surfaces
• Adhesive Degradation
• Precision glass imaging lens for the clearest view of endoscope interior
• Accepts all DIN standard endoscope eyepieces
• Locking eyepiece attachment prevents possible damage during testing
• Adapts to standard endoscopic video cameras for documentation



CHECK FOR ENDOSCOPE LENS DAMAGE IN SECONDS.

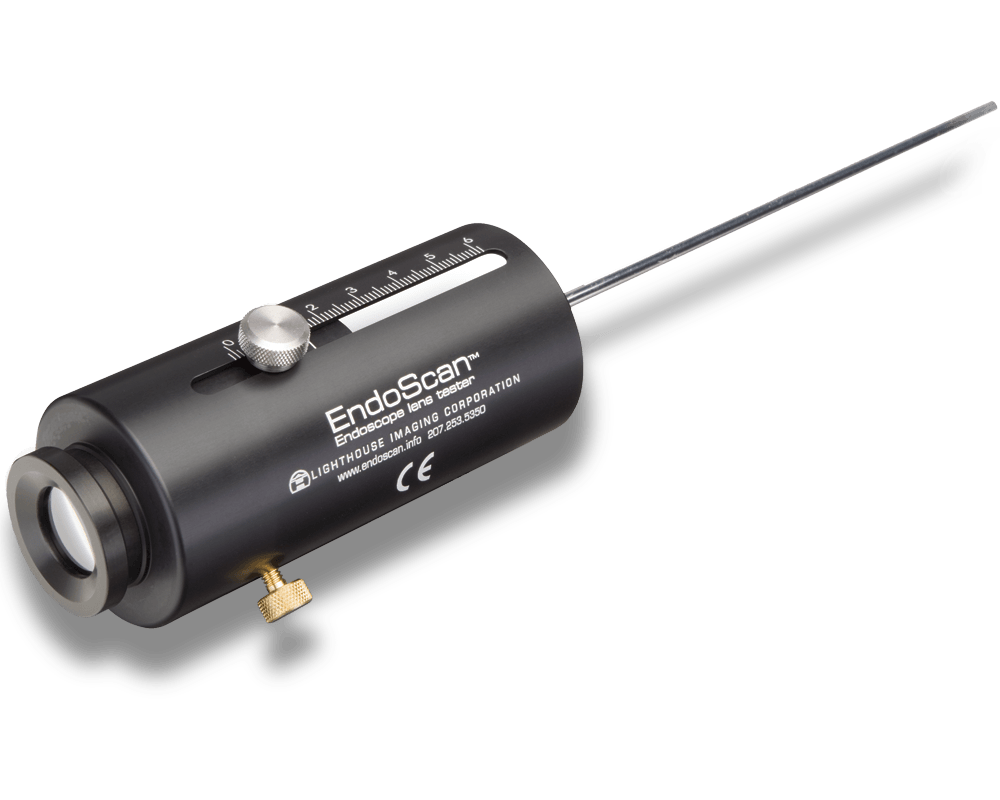

EndoScan, the improved endoscope lens tester from Lighthouse Imaging, is designed to accurately and safely assess the inner surfaces of all diameters and lengths of rigid endoscopes.

Key Features

• Light output of endoscopic light source—all major brands & types
• Light transmission through fiberoptic light cable—all connector types
• Light transmission through optical fibers in flexible and rigid endoscopes

 TEST THE ILLUMINATION OF ENDOSCOPIC SYSTEMS, AS A SYSTEM OR AS INDIVIDUAL COMPONENTS.

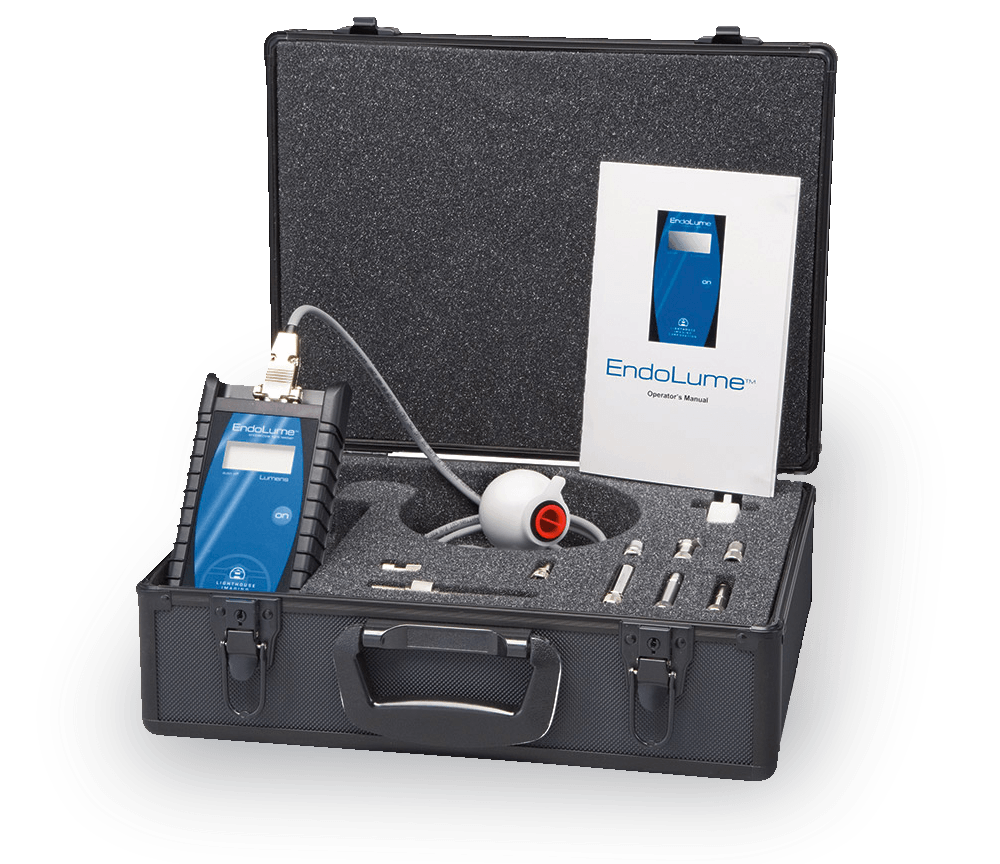

EndoLume, the endoscope system light meter from Lighthouse Imaging, is designed to be simple to use, yet have enough versatility to measure all parts of your endoscopic illumination system.

EndoLume identifies the true source of illumination problems by quantitatively measuring.

Key Features

• Field of View Measurements: Apparent, Real, and Extended Direction of view
• Image Quality (Center and Edge)
• Eyepiece focus
• Image transmission (brightness)
• Image vignetting
• Color tint
• Optical distortion
• Illumination strength and alignment
• Measure eyepiece runout
• Digital Encoder Inputs
• Accessories and customizations options not available with the XT

A BENCH-MOUNTED ENDOSCOPE IMAGE QUALITY TEST SYSTEM SUITABLE FOR HIGH PRODUCTION WORK ENVIRONMENTS.

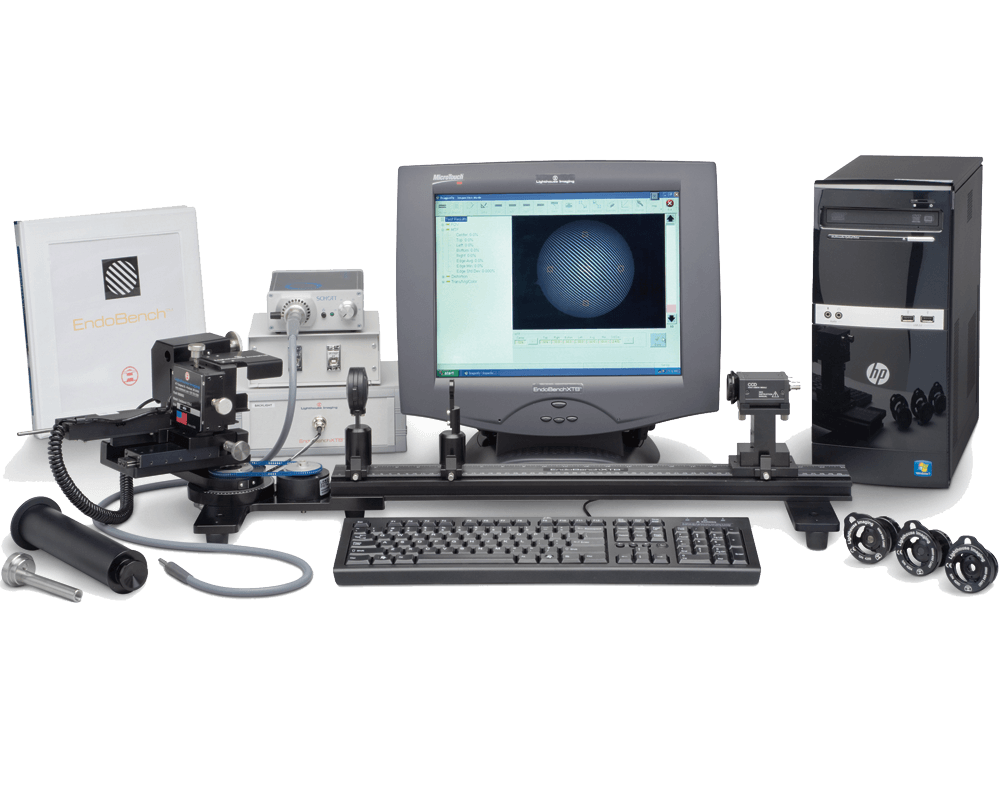

Bench Top Systems

The EndoBench products can measure many optical performance characteristics of endoscopes.

Key Features

• Extended direction of view measurement range
• Improved data interface
• 25% higher output external light source with improved control
• Up-to-date system software and high performance CPU
• MTF weighted average
• Ability to rotate the data collection axis
• Save and load setup information
• Optional extended measurement range for very bright scopes

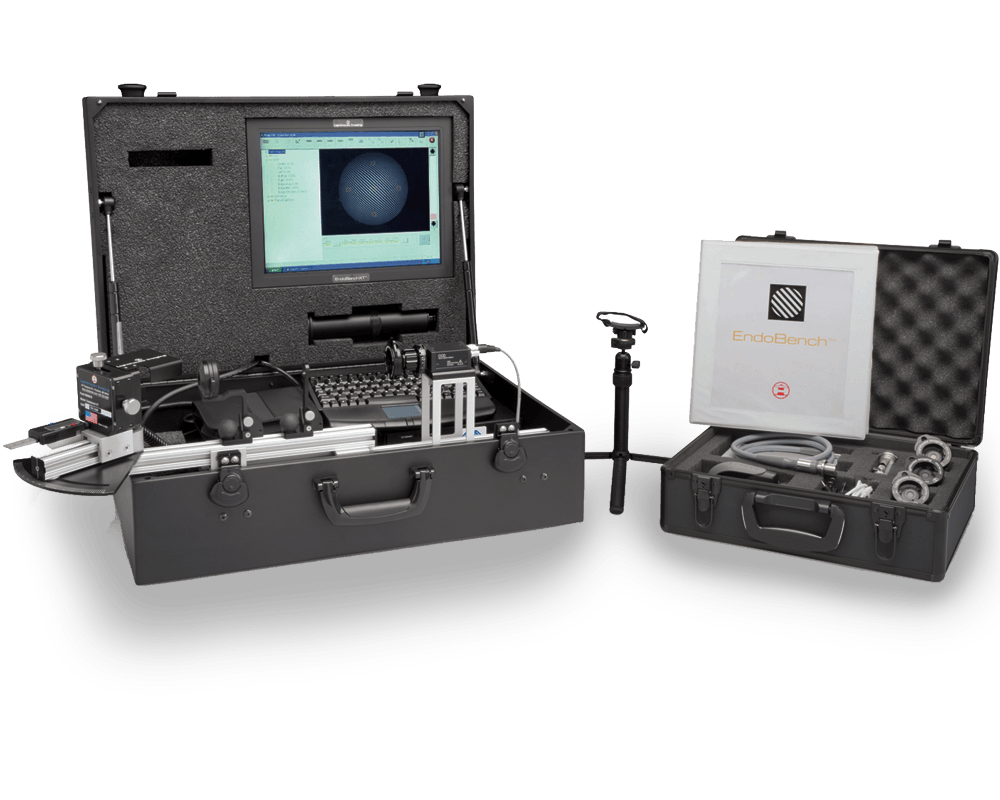

EndoBench XTis a portable endoscope image quality test system for medical equipment QC testing (optimized for when portability is desired). Using custom designed opto-mechanical system and software,

The EndoBench XT evaluates and reports the parameters that are central to a clinical environment. Adapters and fixtures enable the measurement of a wide range of rigid, flexible and video endoscopes.

Key Features

THIS KIT ALLOWS THE CENTRAL STERILE DEPARTMENT TO PERFORM A COMPLETE EVALUATION OF ENDOSCOPES IN THEIR CARE.

The Lighthouse Imaging Triage Kit adds the EndoScan rigid endoscope visual tester to the EndoLume Measurement Kit. This combination of products is aimed at the Central Sterile Department and provides the capability of performing a complete evaluation of endoscopes in their care.

With only basic training, no additional equipment, and just a few minutes of time, a CSP technician or Biomed can perform an analysis of both the imaging and illumination functions of a rigid endoscope. The technician can then determine whether an endoscope is safe to put back into the surgical rotation or needs to be sent on for further evaluation.

Key Features

• Compact, efficient, durable source of brilliant “daylight” quality light
• Brighter, whiter light than 150W Halogen units
• Color temperature: 6500°K
• Typical LED life: >50,000 hours
• Low power consumption: 52W typical
• Electronic (PWM) intensity control from 0- 100%
• Multi-port turret supports: ACMI, Olympus, Storz and Wolf
• Accepts 100-240V AC, 50/60 Hz input power for worldwide operation
• Regulatory: UL60601-1, CAN/CSA C22.2 No. 601.1, EN60601-1-2; CE marked.

BRIGHT, WHITE LIGHT FOR CONVENIENTLY AND EFFICIENTLY TESTING ENDOSCOPIC SYSTEMS.

Provide brilliant “daylight” quality light, conveniently and efficiently. The Light Source from Lighthouse Imaging is designed to provide bright, white light for testing endoscopic systems. The compact, multi-turret design makes the L700 a versatile light source for system illumination testing with the EndoLume light meter.
